Carbon wrapping

First off you'll need to get the carbon & resin. I picked up some 200 gram/meter 2x2 3k twill weave off ebay

The resin, you want to get some surfboard resin, its super clear so the weave will be visable & UV resistant so your pieces wont dis-colour. I bought some Simlar ISO 7x from here (there are other resins but this is the best!) http://www.seabase.eu/ Simlar ISO 7x what you will need to also get is some Wax in Styrene

Get yourself some latex gloves, a 1/2" paint brush, nail varnish remover with Acetone in it (for cleaning the brush), project pack of wet & dry paper, a syringe (for measuring the cataylst), measuring cups and your ready to go.

Get what ever piece you want to wrap (start simple remember!) I'll use the interior mirror trims for this.

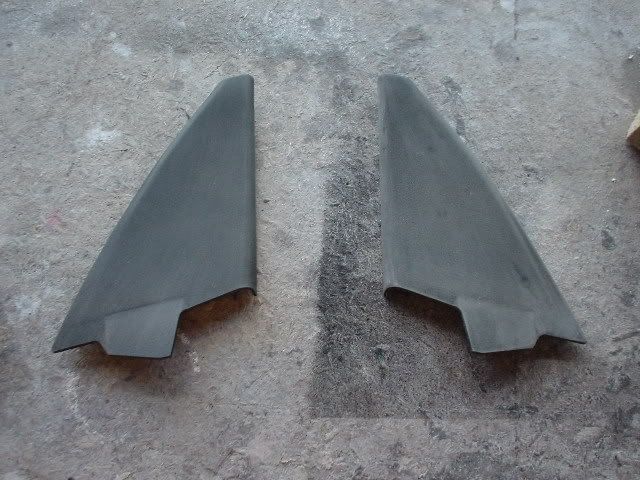

Rub them down with some 120 grit to key the surface and give them a good wash to get all the grit & dirt off.

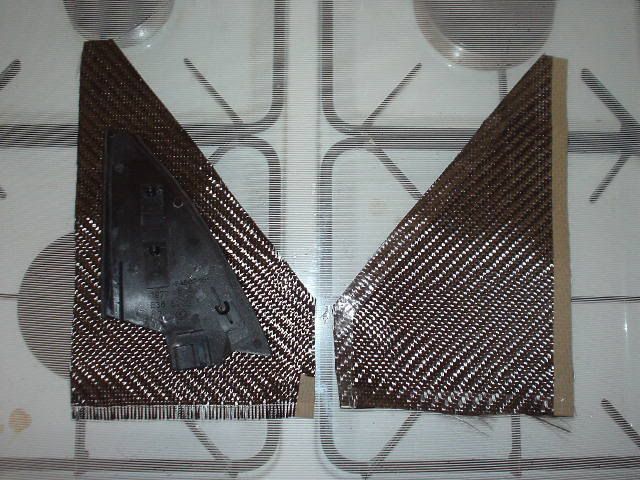

Next is cut the carbon to shape so it easier to wrap around the trim. Dont forget to tape the edges of the carbon otherwise it'll fray and lose all its shape

Lay down a coat of resin mixed with hardener over the surface of the piece, Let the resin dry enough so that when you touch it with your finger it leaves an imprint but doesn’t come off on your finger.

Don't mix up too much resin for this, it'll only go to waste!! the Simlar has a 1:45 ratio, for these small parts I mix up no more than 25/30ml for both pieces.. so just under a ml of hardener

Once its tacked up you can lay the carbon CAREFULLY over the piece (this is basically the most critical parts of the process, **** this and you've ruined the part, simple.

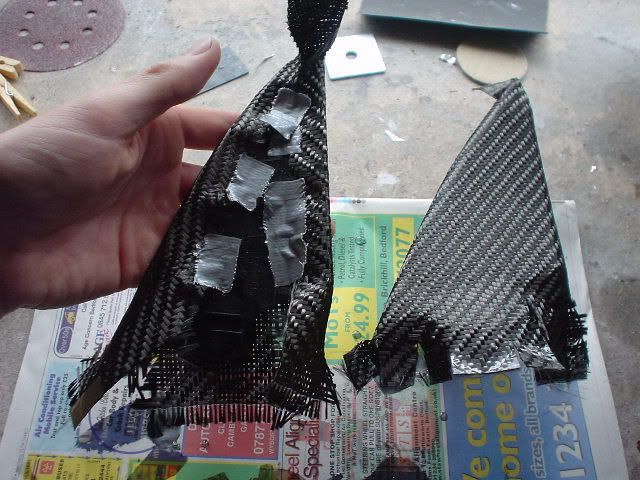

Wrap the carbon around the trim and start to tape it at the back to stop it from coming unstuck (doesn't have to look pretty on the back

Nows the time to 'correct' any slightly wonky weave you might have (on these flat bits you'll be cool but when you do harder parts it happens). To get it all looking pretty again grab yourself something small with a blunt but small tip, I use one of the clicker pencils with the lead removed. You can now go around the trim pushing and tweaking the weave until its perfect again.

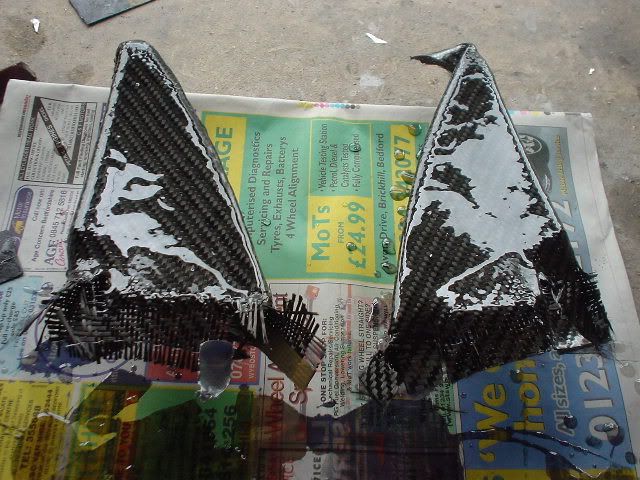

Once thats dry now come the process of building up the layers of the resin, you'll be sanding most of the resin back to get a totally flat finish so it's important to add plenty of layers so you dont sand though the resin into the carbon. Rule of thumb I've used 3 good layers on all my pieces and it's allowed me sanding back enough without rubbing through.

In the last layer of resin and your wax in styrene this basically stopped the top layer of resin staying tacky!

I didn't buy any of this and found out the hard way. If you dont have this wax in styrene its not a big deal you can still sand it ok but your hands stick to it. ITS OK THE RESIN IS DRY UNDERNEATH!!!!

Nows the sanding..... starting with 120 to get the high spots etc.. working through 240,400,800 and finally 1200, I kid you not!!!!

To cut off the excess from the back of the trim I use a Dremel with a combo of the sanding do-dar and a cutting disc. BEFORE you cut anything have quick look at where the trims going and work out what edges will be seen when on the bike, you dont want to sand an edge back too far otherwise again it'll knacker the part

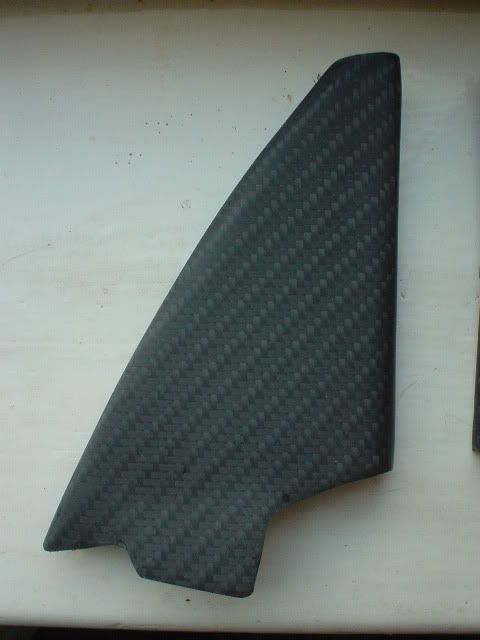

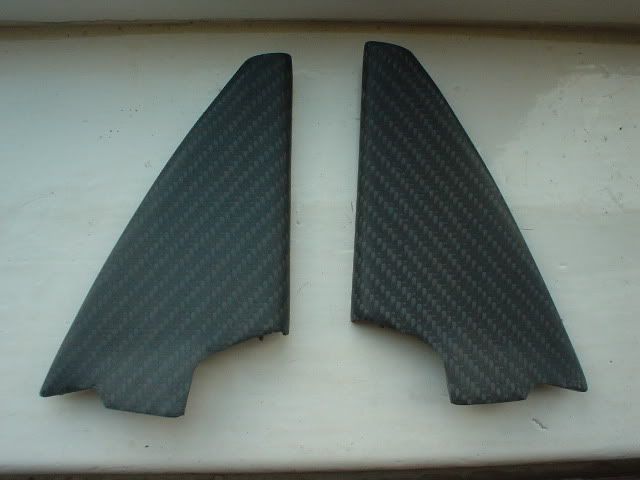

You'll end up with a perfectly flatened piece, its a very similar to bodywork, before lacquer you have to flat back the panel.

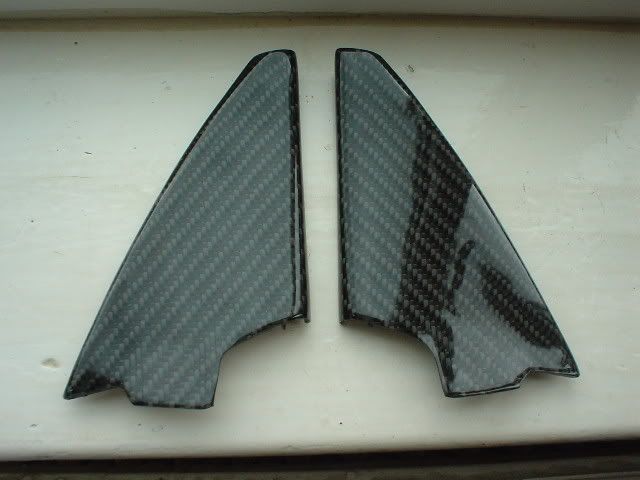

The final step is a coat of good old lacquer

Post Tue Feb 21, 2012 11:57 am

Re: Carbon wrapping

Another good un Carly.
User avatar

Master Pie Muncher

Posts: 7914

Images: 2

Joined: Tue Dec 07, 2010 10:26 am

Location: Bramhall, Cheshire

Post Tue Feb 21, 2012 1:07 pm

Re: Carbon wrapping

Oooo i like the look of that compared to the wrapping!
User avatar

I quite like it round here!

Posts: 3664

Images: 0

Joined: Sat Oct 08, 2011 1:01 pm

Post Tue Feb 21, 2012 8:54 pm

Re: Carbon wrapping

V good will have to try some time, BTW WTF is wax in styrene.
Imagehttp://www.ypel.co.uk
It's not what you ride - Its how you ride it!
User avatar

Do you like pie... Poontang Pie?

Posts: 2366

Joined: Thu Dec 09, 2010 1:02 pm

Location: Beckenham

Post Tue Feb 21, 2012 9:40 pm

Re: Carbon wrapping

ima send my fairing up to you lol where did you get the wrap from mate?

United we grow, support a Mo! http://uk.movember.com/team/442313
User avatar

Not just a number...

Posts: 85

Joined: Tue Dec 20, 2011 10:13 pm

Post Wed Feb 22, 2012 10:37 am

Carbon wrapping

Looks great, I have to try
User avatar

Master Pie Muncher

Posts: 10178

Images: 0

Joined: Tue Dec 07, 2010 12:03 pm

Location: Cumbria

Post Wed Feb 22, 2012 11:19 am

Re: Carbon wrapping

everyone loves a bit of carbon :lol:
User avatar

I quite like it round here!

Posts: 123

Joined: Mon Feb 14, 2011 2:10 pm

Location: Greater Manchester

Post Wed Feb 22, 2012 11:39 am

Re: Carbon wrapping

Does look good that Carlos. Mmmmmm what can I carbon.......
Want to race..........just flash your blue lights......

2010 Aprilia RSV4 Factory
Racetec Black Series Growler
User avatar

Master Pie Muncher

Posts: 7914

Images: 2

Joined: Tue Dec 07, 2010 10:26 am

Location: Bramhall, Cheshire

Post Wed Feb 22, 2012 11:43 am

Re: Carbon wrapping

CTR1 wrote:Does look good that Carlos. Mmmmmm what can I carbon.......


Tank?
User avatar

I quite like it round here!

Posts: 123

Joined: Mon Feb 14, 2011 2:10 pm

Location: Greater Manchester

Post Wed Feb 22, 2012 12:43 pm

Re: Carbon wrapping

If I had a spare one to practice on I would. Need something smaller to start/ less complicated to start with.
Want to race..........just flash your blue lights......

2010 Aprilia RSV4 Factory
Racetec Black Series Growler
User avatar

Master Pie Muncher

Posts: 10178

Images: 0

Joined: Tue Dec 07, 2010 12:03 pm

Location: Cumbria

Post Wed Feb 22, 2012 3:09 pm

Re: Carbon wrapping

yeah start with flat pieces and go from there
User avatar

Do you like pie... Poontang Pie?

Posts: 2366

Joined: Thu Dec 09, 2010 1:02 pm

Location: Beckenham

Post Wed Feb 22, 2012 3:21 pm

Re: Carbon wrapping

where did you get the carbon from mate?

United we grow, support a Mo! http://uk.movember.com/team/442313
User avatar

Master Pie Muncher

Posts: 10178

Images: 0

Joined: Tue Dec 07, 2010 12:03 pm

Location: Cumbria

Post Wed Feb 22, 2012 3:27 pm

Re: Carbon wrapping

ebay bay as usual is your friend

search for

carbon fibre twill weave
User avatar

Master Pie Muncher

Posts: 10178

Images: 0

Joined: Tue Dec 07, 2010 12:03 pm

Location: Cumbria

Post Wed Feb 22, 2012 3:33 pm

Re: Carbon wrapping

oh and you can get the Wax in Styrene from Seabase as well

http://www.seabase.eu/products/cat/Chem ... n-Styrene/
User avatar

I quite like it round here!

Posts: 312

Joined: Fri Dec 17, 2010 2:35 pm

Post Wed Feb 22, 2012 8:35 pm

Re: Carbon wrapping

The way you've done it, would the carbon piece not be larger than the original because you wrappied it around the original instead of replacing it?

Normally it's part laid into a mould, then the carbon laid into the mould so it's an exact replica.
