Fitting new levers to an 06 R1

I purchased some Folding and extendable span adjuster levers off the bay £40 from a supplier 2wheels
I went for red (dark pink lol) adjusters and titanium colour levers)

http://www.ebay.co.uk/itm/Folding-Folda ... 522wt_1031

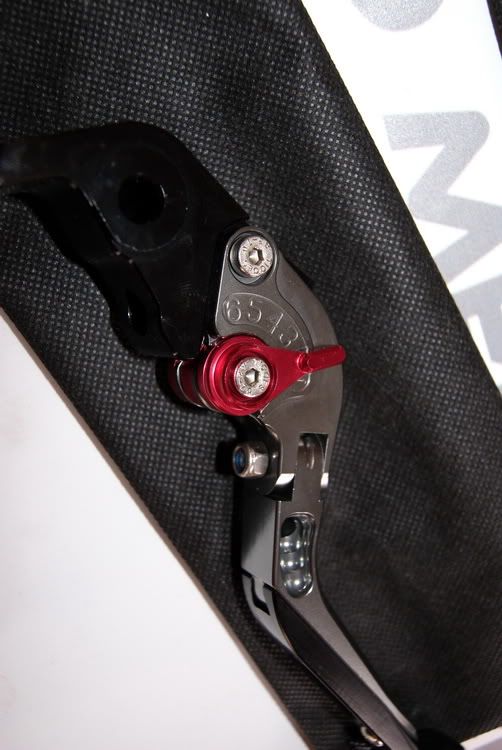

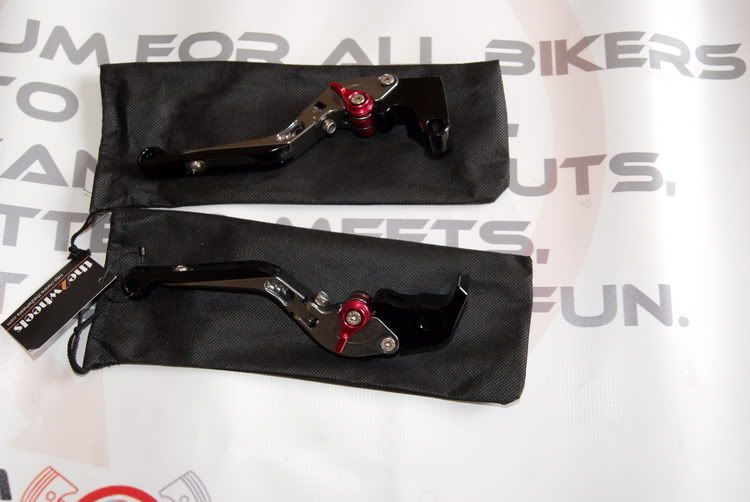

this is what arrived in the post





So on to fitting them, started on the brake site as it's the easiest :P

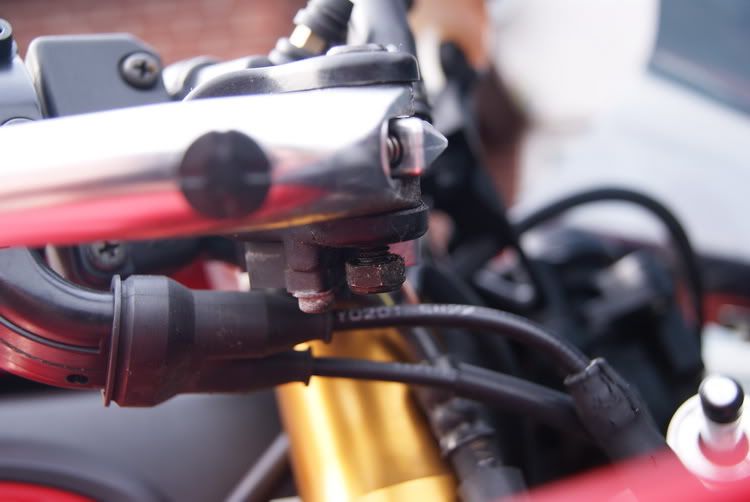

Unscrew the nut on the underside of the lever bracket (10mm spanner)

unscrew and remove the pivot bolt from the top with a flat head screw driver

remover the lever

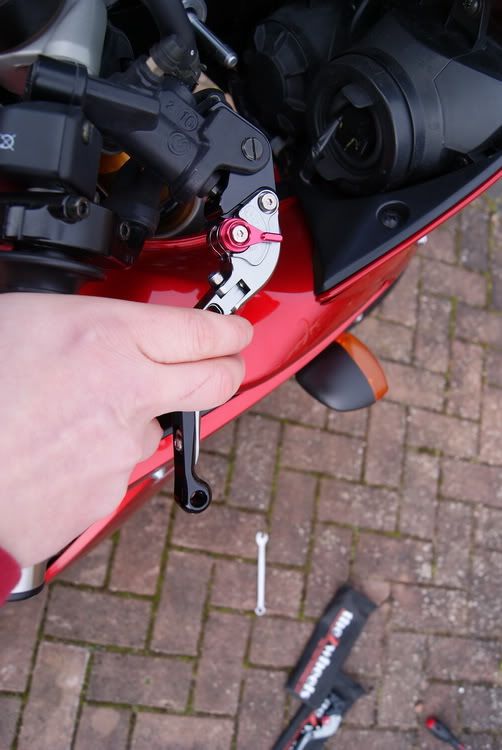

put the new lever in place (make sure it's the brake lever)

replace the pivot bolt from the top with a flat head screw driver and tighten

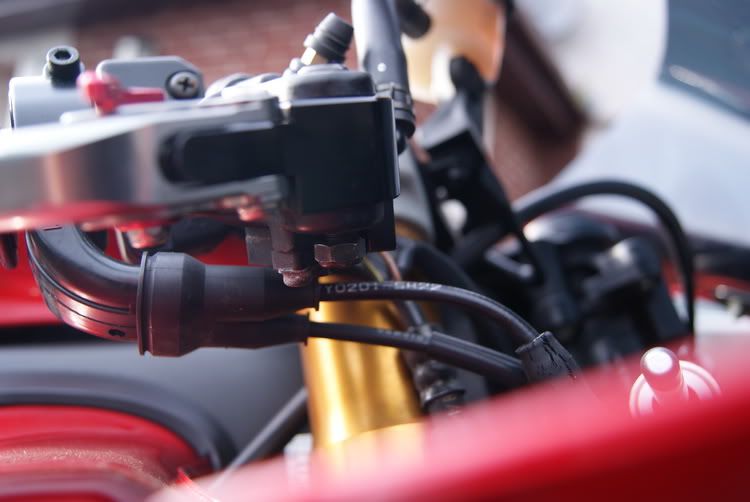

replace and tighten the nut on the underside of the lever bracket

adjust span to suit your hand size

with an allen key loosen the length adjuster screw and slide lever to required length then re-tighten

check flip up action is working correctly

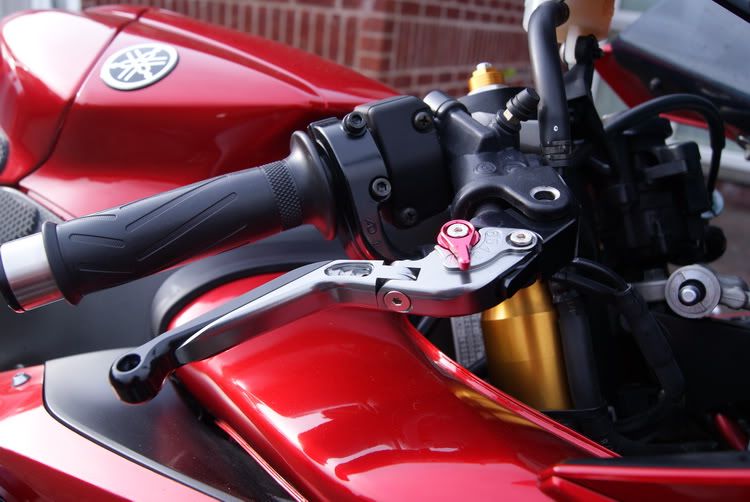

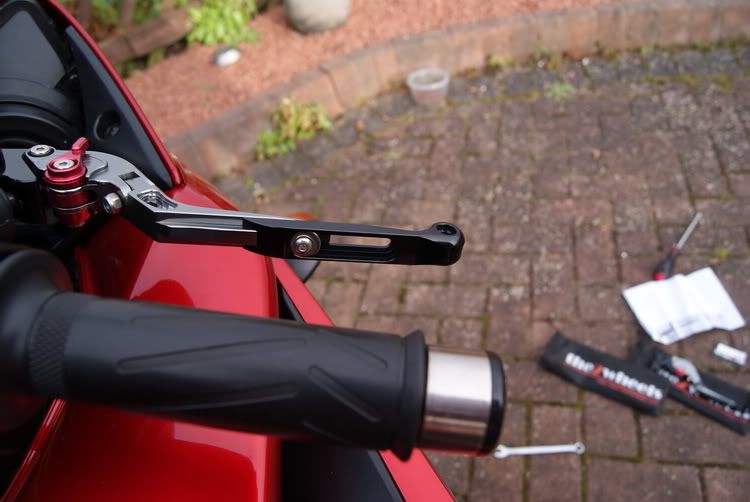

brake side complete,
for piece of mind you don't have slightly pressed brakes place front end of bike on paddock stand and check front wheel spins freely

Clutch lever

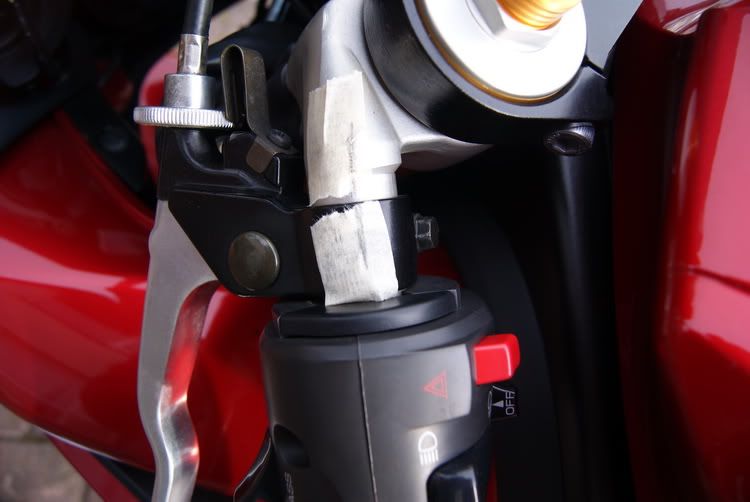

apply a pice of masking tape and mark position of lever bracket to bar

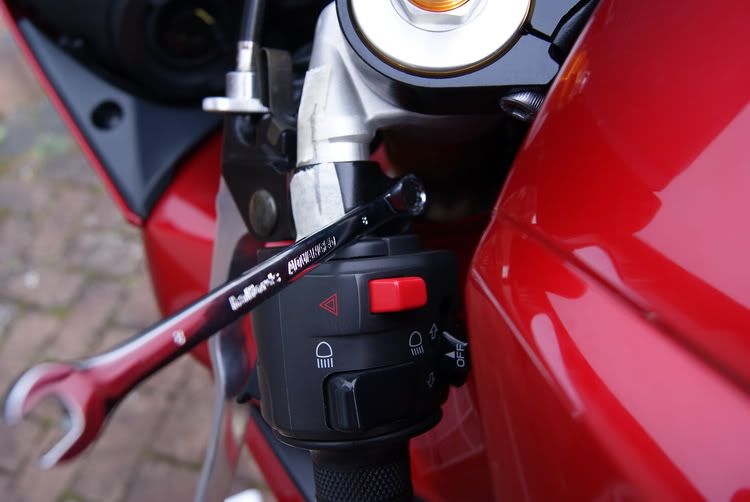

Loosen lever bracket (8mm spanner)

twist lever to gain access to pivot nut

remove pivot nut (10mm spanner)

Remove pivot bolt

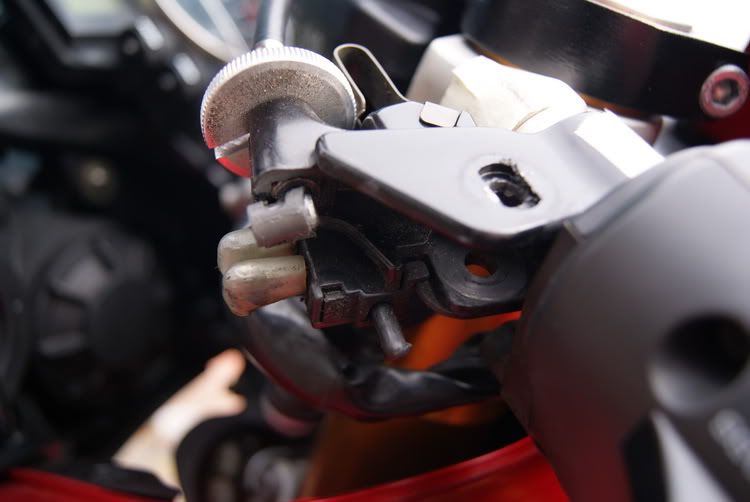

Remove lever releasing clutch cable by slot at the same time

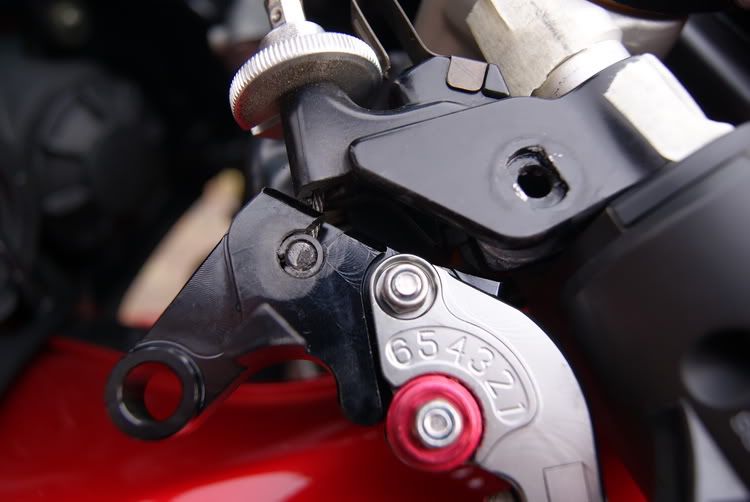

attach clutch cable to new lever

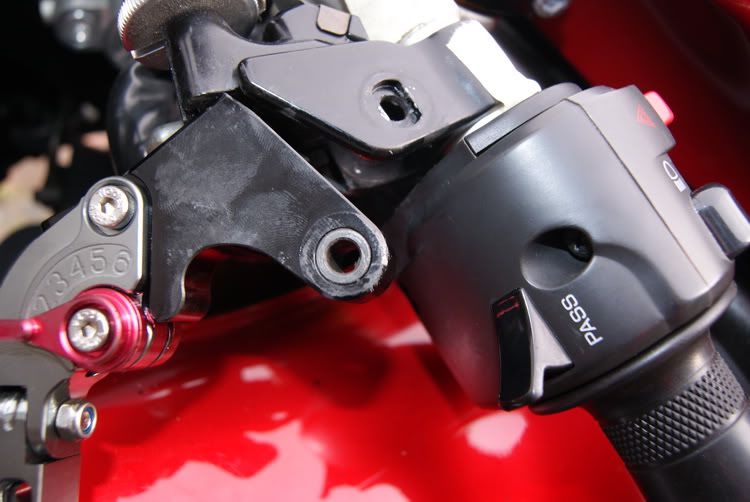

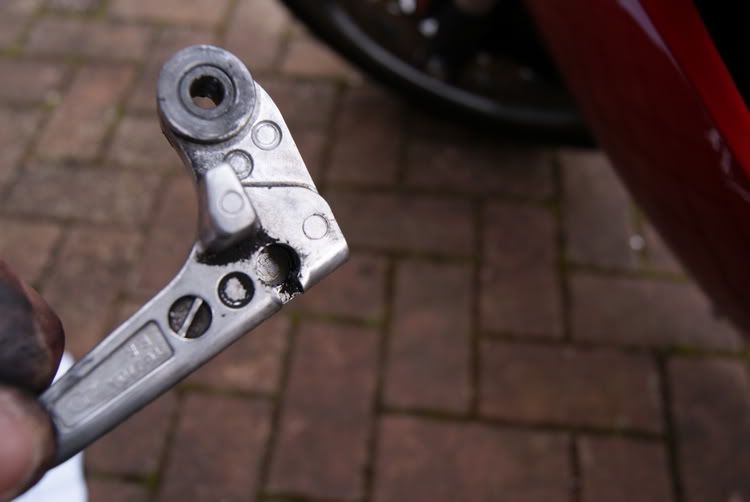

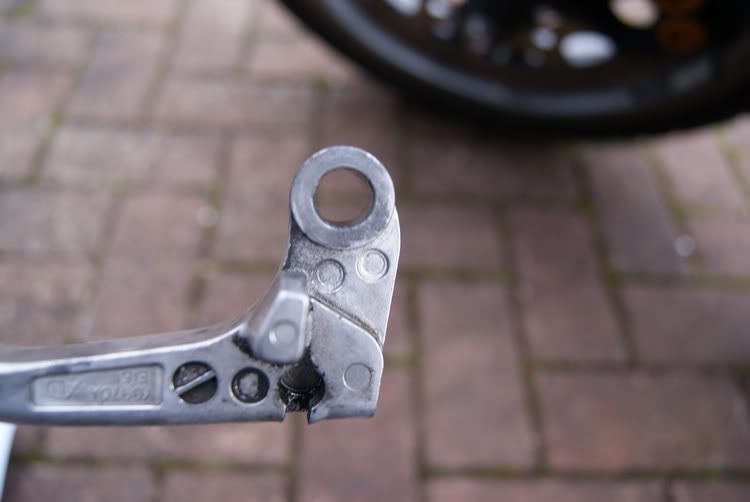

remove pivot bolt bush from old lever and insert into new lever

put lever into place and insert pivot bolt

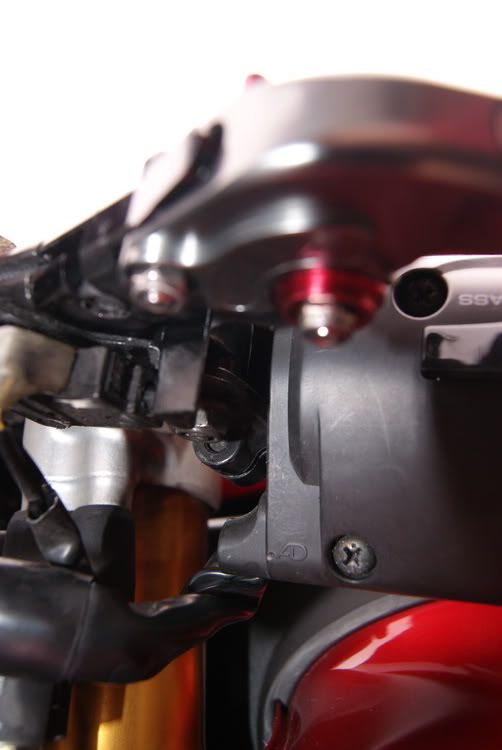

replace and tighten the nut on the underside of the lever bracket

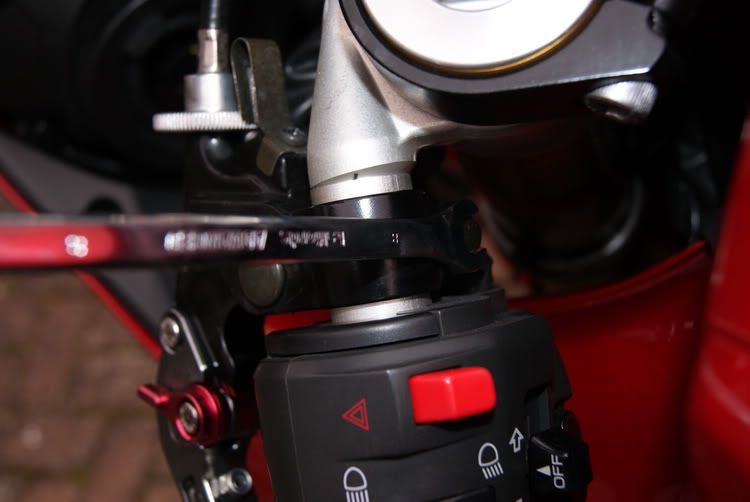

re-align lever bracket and tighten lever bracket bolt

adjust span and lever length as before
Check and adjust clutch to make sure clutch is engaging properly!

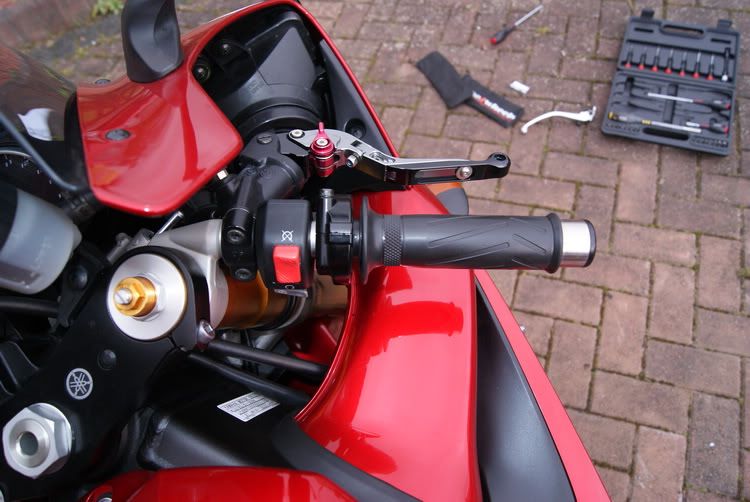

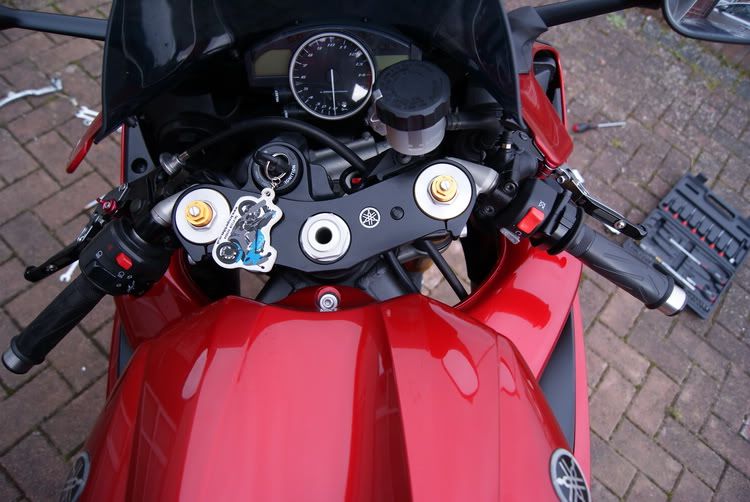

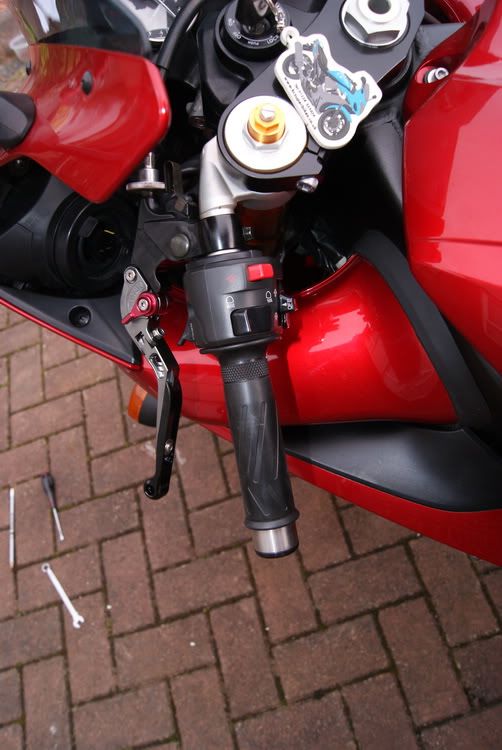

Your levers are now fitted
